Bullet Resistant Glasses without Polycarbonate

Our BULLET RESISTANT GLASS WITHOUT POLYCARBONATE, designated as the Spall version, delivers robust protection for specialised vehicles while prioritising optical clarity and surface durability. Unlike glass-polycarbonate constructions, this all-glass configuration uses multiple layers of premium automotive glass bonded with energy-absorbing interlayers. Glass surfaces on both exterior and cabin-facing sides provide scratch resistance, simple cleaning, and lasting visual quality. The laminated stack absorbs and distributes projectile energy across its engineered glass and interlayers. It is suited to armoured windscreens, fixed side windows, rear glazing, security partitions, and vehicles where certified spall performance is acceptable. Developed for diplomatic cars, executive SUVs, police fleets, cash-in-transit vehicles, and protected transport, it combines ballistic resistance with clear visibility and discreet factory-finished styling.

PROJECTS

FEATURED IMAGES

Product details

  • BULLETSHIELD™ FIRST (SPALL): Standard clear all-glass automotive ballistic glazing
  • BULLETSHIELD™ CLARITY (SPALL): Ultra-clear all-glass glazing for enhanced visibility and colour neutrality
  • BULLETSHIELD™ CURVE (SPALL): Vehicle-specific curved all-glass ballistic glazing for windscreens and fixed windows
  • BULLETSHIELD™ AUTO-FIT: Custom glazing engineering for reinforced frames, overlap zones, seals, and vehicle bodies

Features

Process Technology
Material Composition
Surface Hardness
Panel Thickness (UL 752 Examples)
Ballistic Certification
Maintenance Profile

Description

Controlled bending where required, followed by High-Pressure Autoclave Lamination
Multi-layered automotive glass with thick security interlayers and no polycarbonate backing
Glass surfaces on both threat and secure sides provide high scratch resistance and easy maintenance
Selected constructions range from 21–22 mm at Level 1 to 36–37 mm at Levels 4–6
Available in constructions tested to EN 1063, NIJ 0108.01, or UL 752; complete vehicles require system-level validation
Cleanable using automotive glass cleaners and non-abrasive tools without precautions associated with exposed polycarbonate surfaces

Features

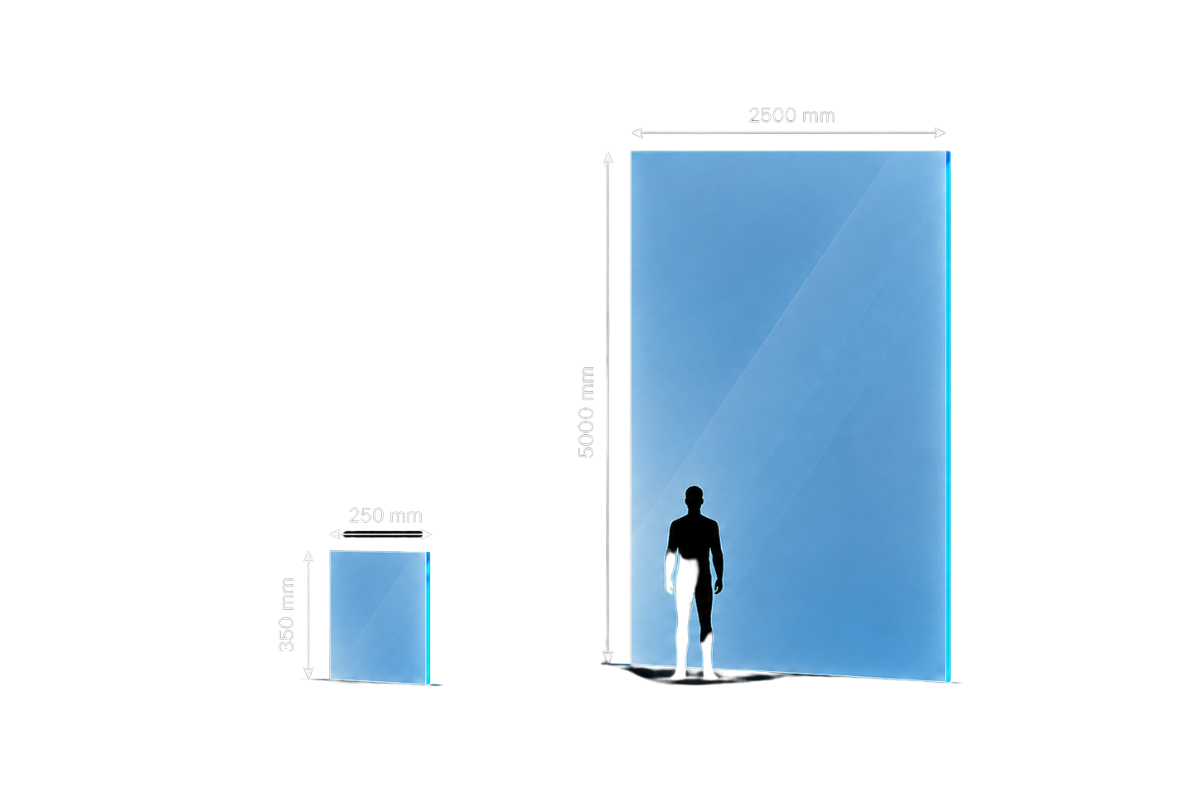

Minimum Size
Maximum Size for S (Spall) Version

Description

250 mm X 350 mm
Up to 2500 mm X 5000 mm for flat production; automotive sizes remain vehicle-specific
