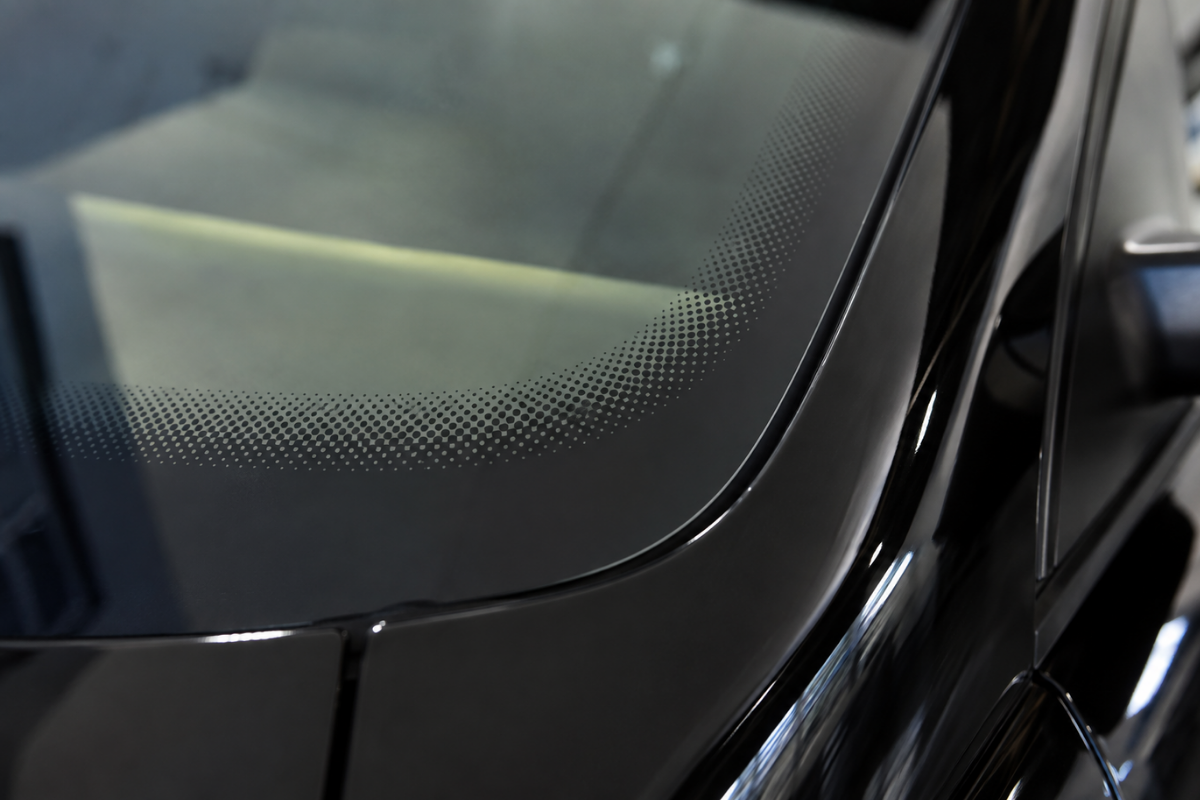

Our CERAMIC PRINTED BULLET RESISTANT GLASS combines ballistic protection with the refined appearance expected from premium protected vehicles. High-temperature ceramic printing or silk-screening is applied to surfaces of curved BULLETSHIELD™ glazing before multi-layer lamination. Permanently fired ceramic bands can reproduce black borders, dot gradients, model-specific markings, privacy areas, or customised logos while concealing bonding zones and reinforced ballistic edges. This enables armoured windscreens, side windows, quarter glass, and rear glazing to retain a factory-finished appearance instead of revealing security modifications. Developed for diplomatic vehicles, executive SUVs, cash-in-transit fleets, police vehicles, and specialised transport, the solution combines discreet protection, optical clarity, solar management, and coordinated vehicle design.
Process Technology
Ink Composition
Print Durability
Ballistic Performance
Velocity Resistance
Automotive ceramic screen-printing and firing, controlled bending, followed by multi-ply autoclave lamination
Heavy-metal-free, environmentally stable inorganic automotive ceramic enamel
Ceramic enamel is fused during firing for lasting resistance to ultraviolet exposure, weather, cleaning, and temperature cycling
Certified configurations can meet EN 1063, UL 752, or NIJ 0108.01; complete protected vehicles require separate system-level validation
Selected BR5 configurations resist 5.56 × 45 mm SS109 projectiles at 940–970 m/sec, subject to certified construction

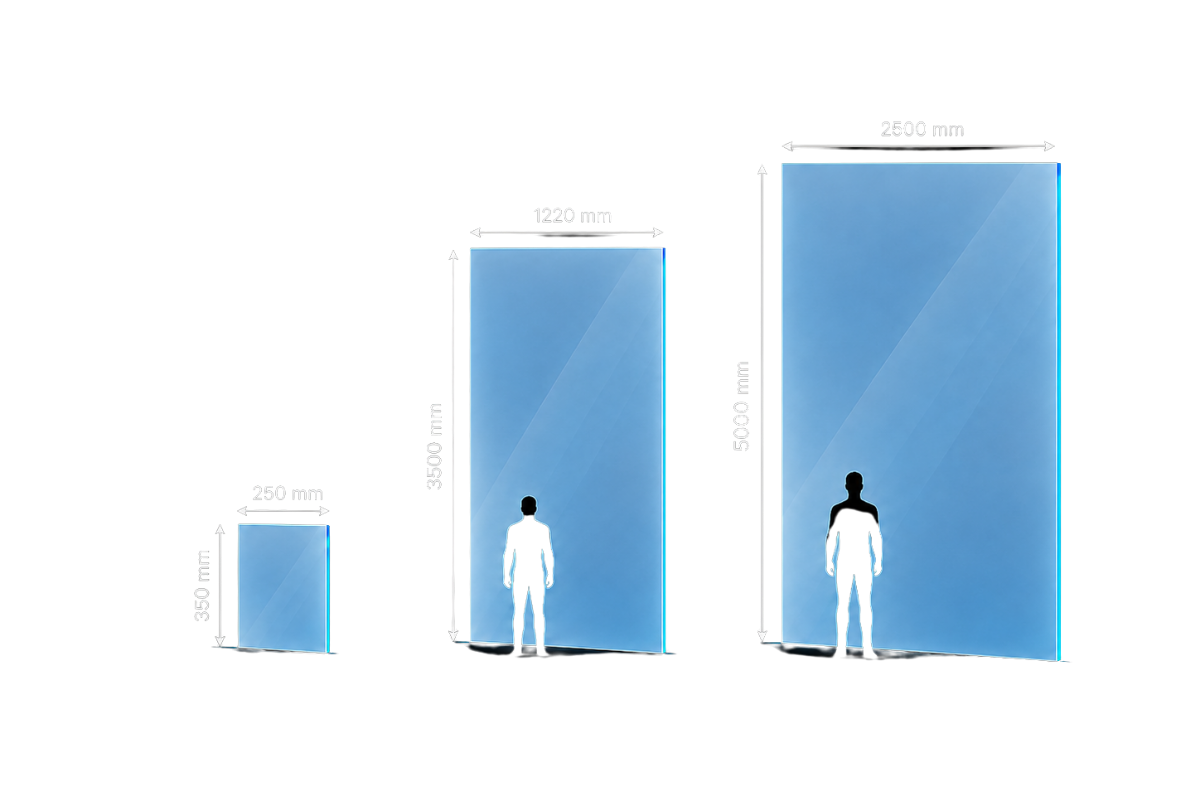

Minimum Size
Maximum Size for S (Spall) Version
Maximum Size for NS (Non-Spall) Version
250 mm × 350 mm
2500 mm × 5000 mm
1220 mm × 3500 mm
