Heat Strengthen Glass

Enhanced thermal stability and optical flatness for high-rise facades

Heat Strengthen Glass

Our HEAT-STRENGTHENED GLASS collection is precision-engineered to offer the perfect equilibrium between enhanced structural durability and superior optical flatness. Processed through a highly controlled heating and slower quenching cycle compared to fully tempered glass, this glazing achieves a targeted surface compression that makes it twice as strong as standard annealed glass. Its most significant architectural advantage lies in its post-breakage behavior; upon impact, it fractures into large, interlocking pieces that remain securely within the glazing frame, actively preventing dangerous glass fallout in high-rise exterior applications. Furthermore, this specific thermal treatment completely eliminates the risk of spontaneous breakage caused by Nickel Sulfide (NiS) inclusions. Whether specified for towering spandrel panels, laminated overhead glazing, or expansive structural envelopes, it provides exceptional resistance to thermal stress and wind loads. We are committed to delivering highly stable, optically pristine glass solutions that meet the rigorous safety and aesthetic demands of modern commercial construction.

PROJECTS

FEATURED IMAGES

Product details

  • THERMA-CORE: Clear heat-strengthened glass
  • THERMA-PURE: Ultra-clear heat-strengthened glass
  • THERMA-SHADE: Tinted heat-strengthened glass
  • THERMA-SHIELD: Solar-control coated heat-strengthened glass
  • THERMA-SPAN: Ceramic-fritted heat-strengthened spandrel glass

Features

Process Technology
Available Glass Variants
Customization & Processing
Panel Thickness
Edge Finishing Options
Surface Compression Stress
Thermal Resistance

Description

Clear, extra-clear, tinted, solar-control coated, and low-E coated
Fully compatible with lamination, Insulated Glass Units (IGUs), and ceramic fritting
4 mm up to 12 mm
Rough grind, arrissed, super-polished
Strictly maintained between 24 MPa to 52 MPa (3,500 psi to 7,500 psi)
Safely withstands temperature differentials of up to 130°C without thermal failure

Features

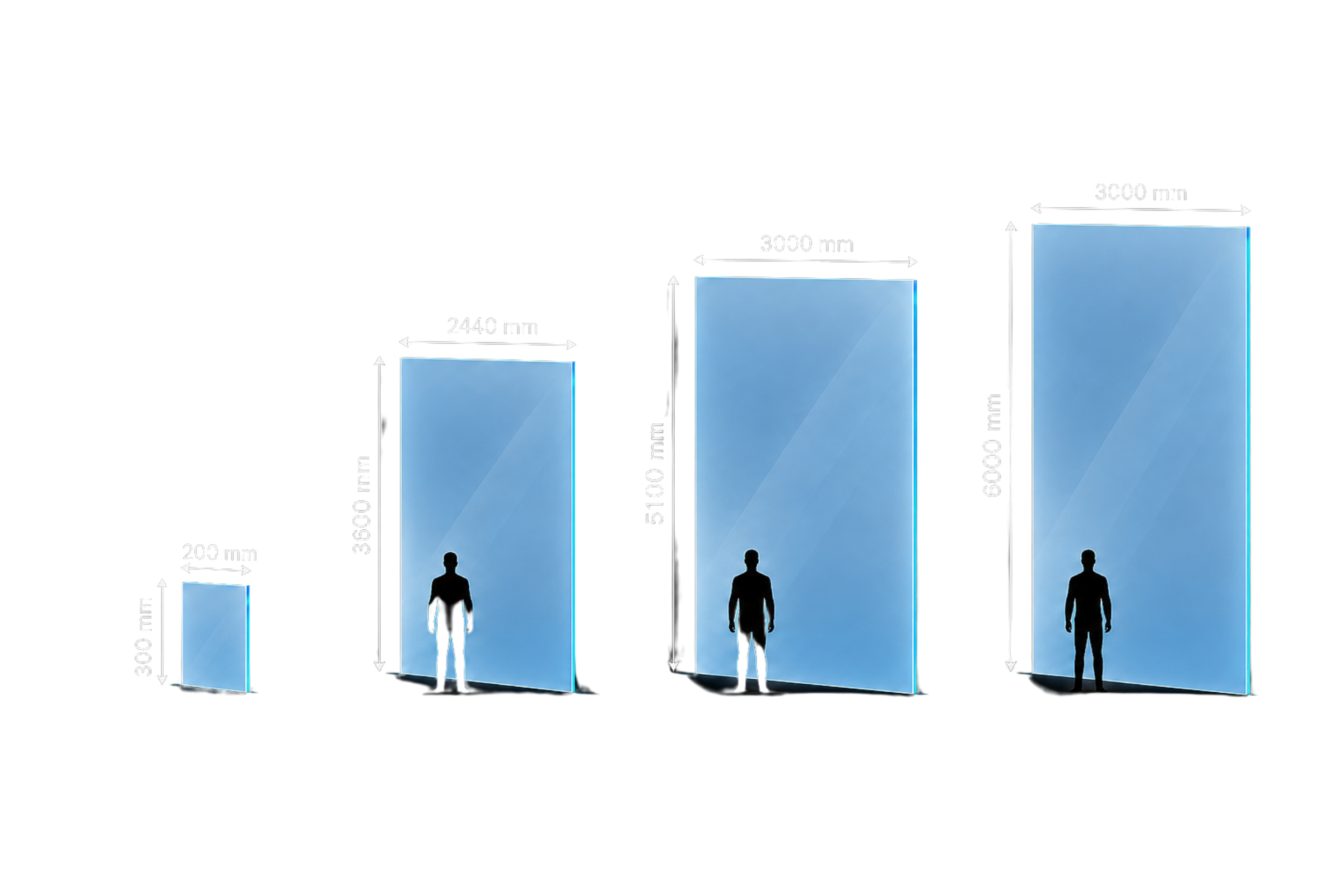

Minimum Dimensions
Maximum Dimensions

Description

200 mm x 300 mm

2440 mm x 3600 mm (for 4 mm and 5 mm thickness)

3000 mm x 5100 mm (for 6 mm thickness)

3000 mm x 6000 mm (for 8 mm to 12 mm thickness)
