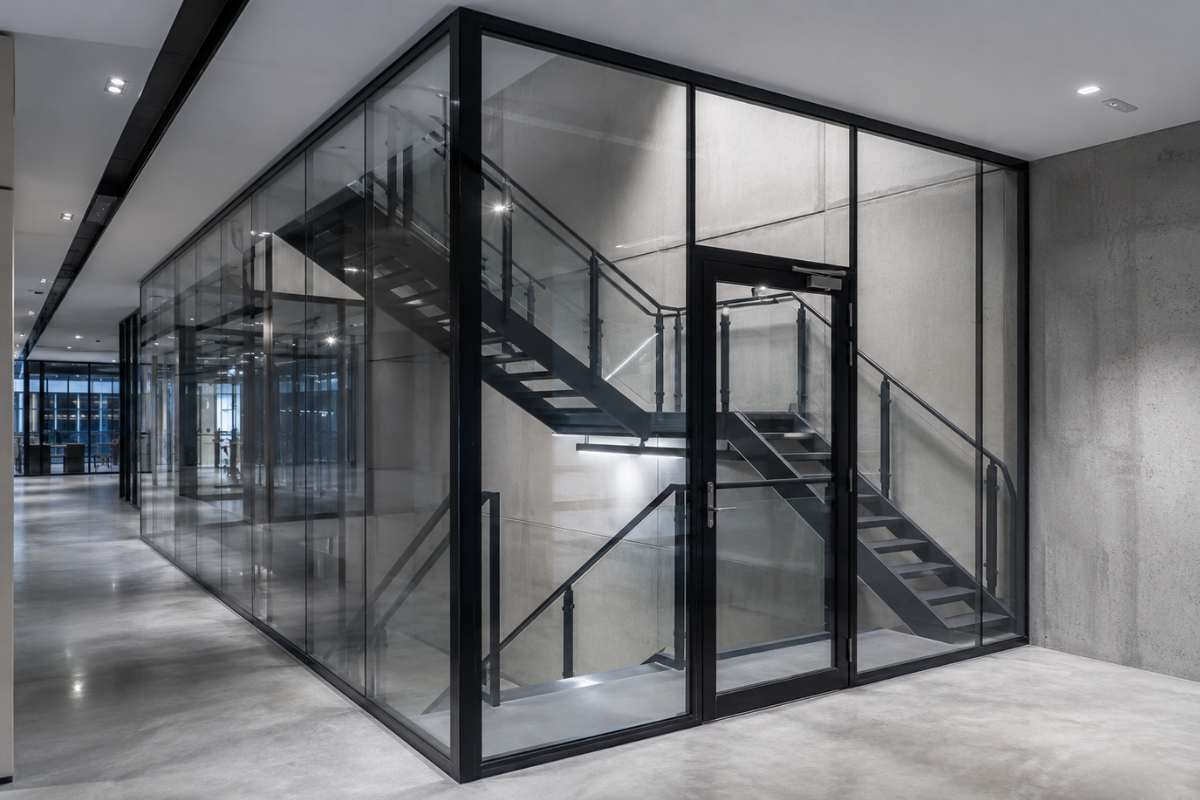

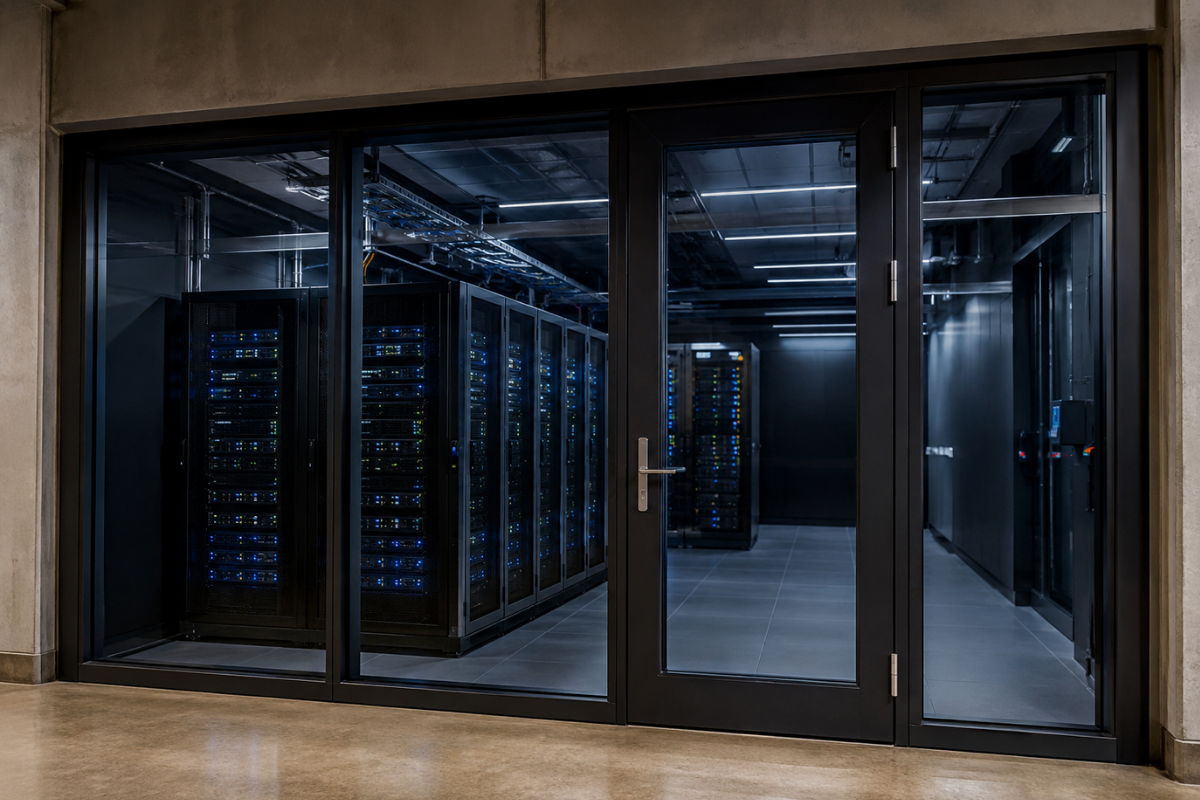

Our FIRE RATED GLASS collection represents the ultimate safeguard against the devastating spread of fire, smoke, and radiant heat. Engineered utilizing highly specialized manufacturing processes—ranging from specially formulated borosilicate glass and wire-mesh reinforced panels to advanced multi-laminated intumescent gel systems—this glazing is designed to withstand extreme temperatures exceeding 1000°C. Based on the specific classification (Integrity 'E', Radiation Control 'EW', or full Insulation 'EI'), these panels maintain their structural integrity within the frame, preventing the passage of toxic smoke and flames for a specified duration (typically 30, 60, 90, or 120 minutes). In the case of fully insulated (EI) variants, the glass also blocks lethal radiant heat, ensuring safe evacuation routes remain cool and passable. This critical life-safety material is a mandatory requirement for modern building codes, utilized in fire escape stairwells, secure server rooms, hospital corridors, and commercial atriums. We are dedicated to providing certified, fail-safe fire glazing that protects property and, most importantly, saves lives.
Process Technology
Fire Resistance Duration
Intumescent Reaction
Panel Thickness
Framing Dependency
Safety Certification
Intumescent Gel Lamination, Borosilicate Floating, or Specialized Chemical Tempering
Certified options available for 30, 60, 90, and 120 minutes
In EI-Class glass, the clear gel layers rapidly expand and turn into an opaque, solid heat-shield when exposed to fire
Ranges from 6 mm (E-Class) up to 60+ mm (EI-120 Class)
Fire-rated glass must always be installed within a fully certified, compatible fire-rated steel or aluminum framing system to function.
Rigorously tested to meet global standards (EN 1364, EN 1363, UL 10C)
Maximum Dimensions
Highly dependent on the specific fire rating, glass type, and the certified framing system (Strictly regulated by testing laboratory certificates).
