Laminated Glass

Uncompromised safety and structural resilience for advanced architectural enclosures

Laminated Glass

Our LAMINATED GLASS collection stands as the ultimate benchmark for safety, security, and structural integrity in modern building design. Engineered utilizing a meticulous combination of intense heat and extreme autoclave pressure, multiple panels of premium glass are permanently bonded together with advanced polymeric interlayers, such as PVB or highly rigid structural ionoplast (SGP). This sophisticated composition ensures that in the rare event of an impact, the glass fragments remain firmly adhered to the resilient interlayer, preventing hazardous fallout and maintaining the building's critical weather barrier. Beyond exceptional post-breakage stability, this highly versatile glazing naturally serves as an impenetrable acoustic shield and actively filters out damaging UV radiation. Whether specified for high-altitude overhead canopies, hurricane-resistant facades, heavy-duty glass flooring, or high-end retail storefronts, it offers uncompromising protection. We are dedicated to delivering engineered safety glazing that guarantees absolute peace of mind, acoustic serenity, and enduring optical clarity for your most critical structural challenges

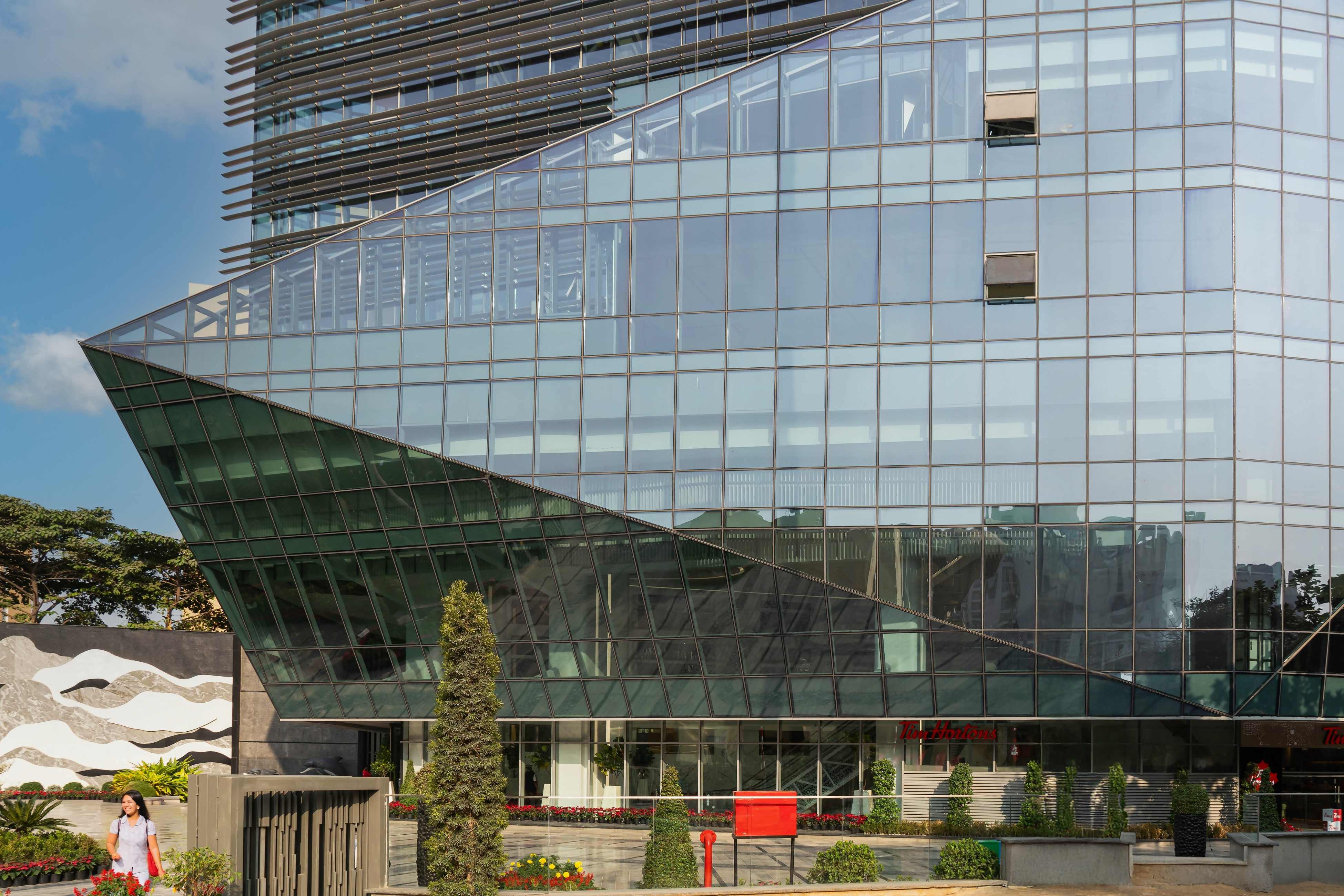

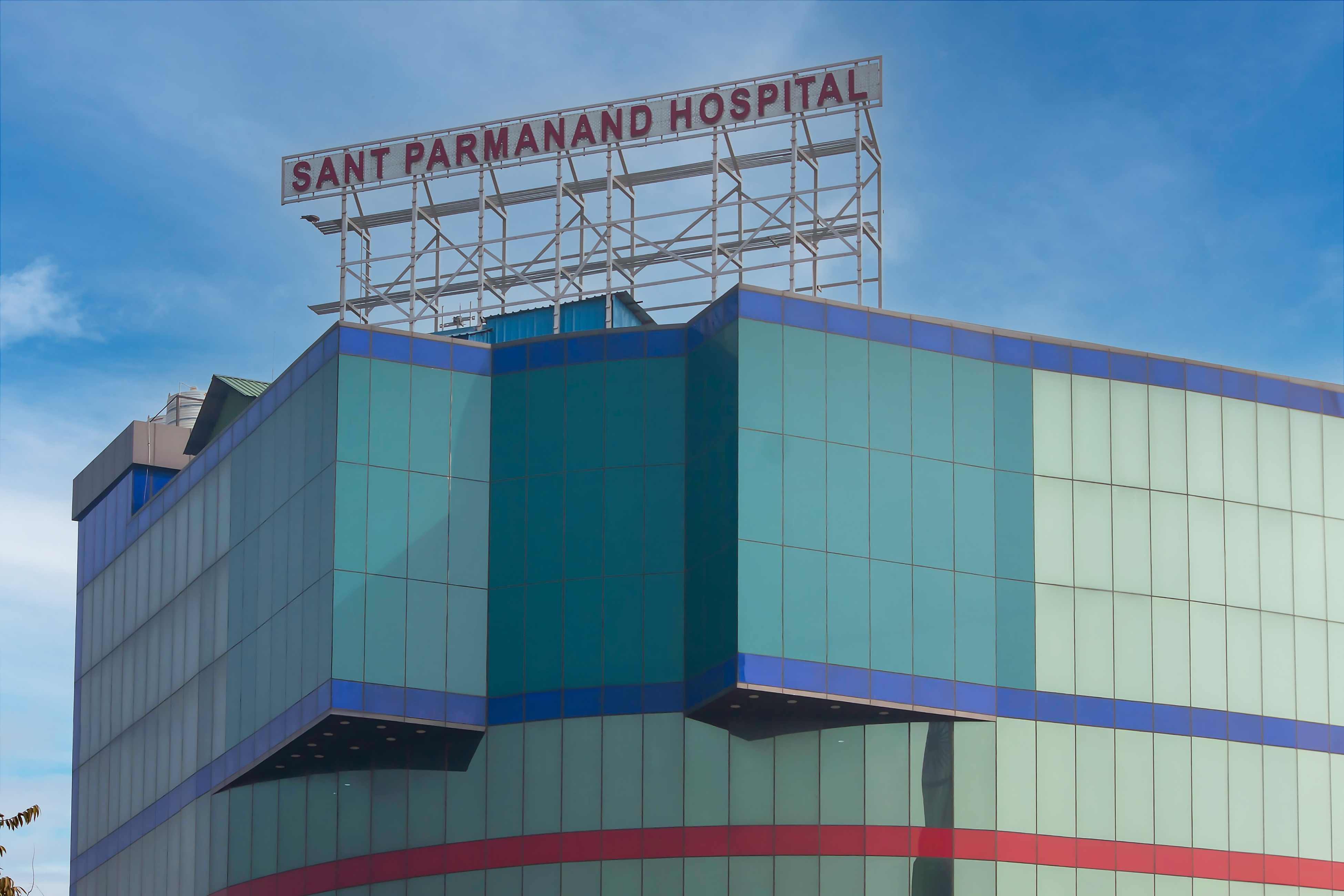

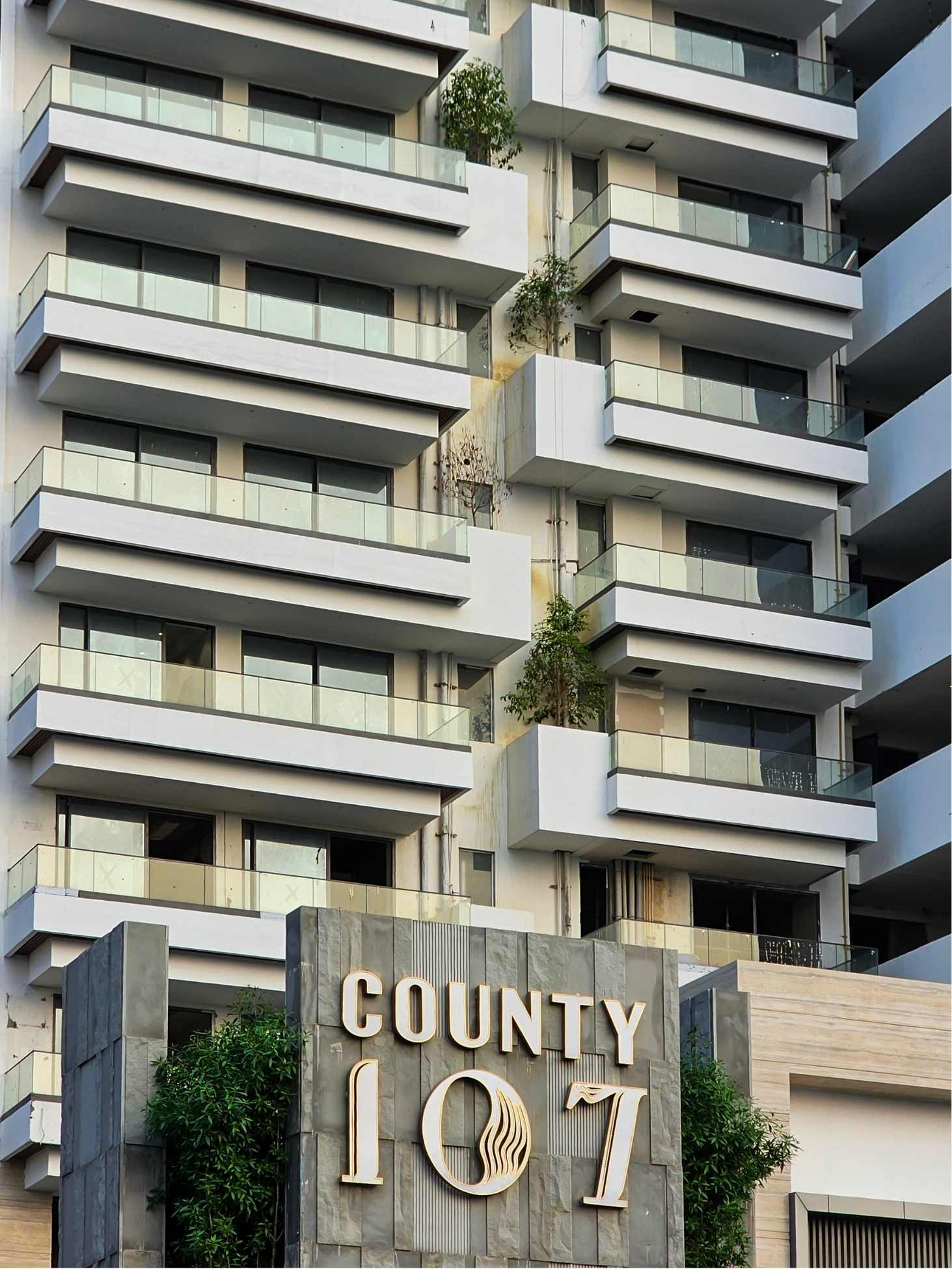

PROJECTS

FEATURED IMAGES

Product details

  • SAFE-CORE: Standard clear laminated safety glass (PVB interlayer)
  • SAFE-STRUCT: Structural laminated glass with high-rigidity ionoplast (SGP) for extreme wind loads
  • SAFE-ACOUSTIC: Sound-dampening laminated glass with specialized acoustic interlayers
  • SAFE-SHIELD: Multi-ply, impact-resistant, and bullet-resistant security glazing
  • SAFE-TINT: Decorative laminated glass featuring colored or translucent interlayers
Features

Process Technology
Interlayer Material Options
Available Glass Variants
Customization & Processing
Panel Thickness
Edge Finishing Options
UV Blockage

Description

High-Pressure Autoclave Lamination Line
Standard PVB, Acoustic PVB, Structural SentryGlas® Plus (SGP), and EVA
Fully compatible with annealed, heat-strengthened, toughened, and high-performance coated substrates
Can be integrated into Double Glazed Units (DGUs) or combined with digital printing
6.38 mm up to 60+ mm (customizable based on multi-ply security requirements)
CNC precision flat polished, stepped edges, and weather-sealed borders
Filters out up to 99.9% of transmitted ultraviolet radiation

Features

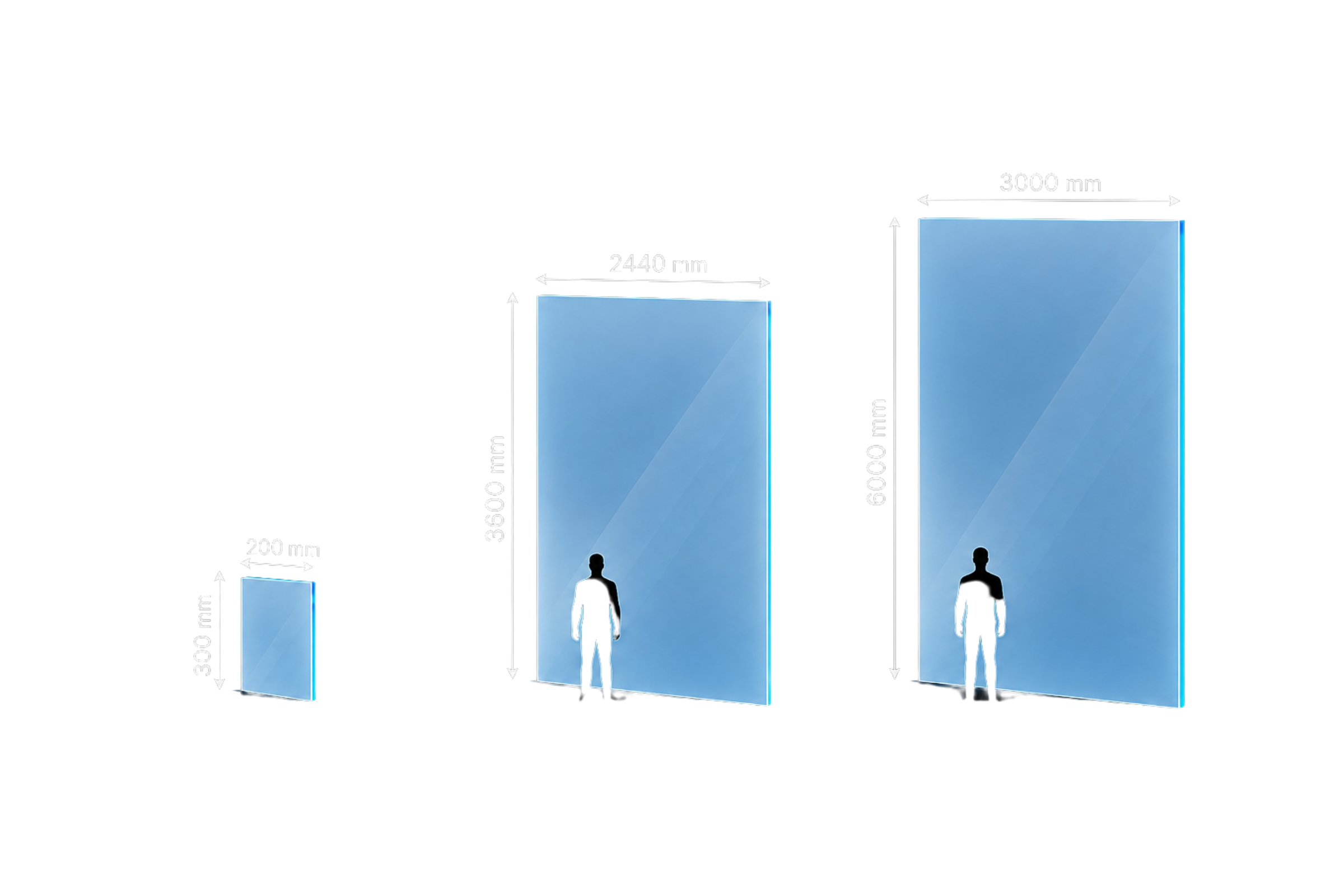

Minimum Dimensions
Maximum Dimensions

Description

200 mm x 300 mm

2440 mm x 3600 mm (Standard architectural sizes)

3000 mm x 6000 mm (Jumbo lamination capabilities)
