Curved/Bent Architectural Glass

Fluid elegance and structural integrity for dynamic facades

Curved/Bent Architectural Glass

Our CURVED/BENT ARCHITECTURAL GLASS collection breaks free from the rigid geometries of traditional construction, offering seamless aesthetic fluidity without compromising on structural integrity. Engineered using advanced CNC-controlled thermal manipulation, flat panels are heated to their precise yielding point before being meticulously shaped over custom radii and rapidly quenched. This sophisticated bending technology minimizes optical distortion and roller wave, ensuring pristine visual continuity across sweeping building envelopes. Essential for creating striking visual landmarks, this highly adaptable glazing is the premier choice for seamless corner facades, panoramic revolving doors, elegant spiral staircases, and bespoke panoramic skylights. We are committed to translating visionary architectural concepts into tangible reality, delivering precision-bent safety glazing that provides unparalleled aesthetic freedom, brilliant optical clarity, and uncompromising safety for your most iconic structural masterpieces.

PROJECTS

FEATURED IMAGES

Product details

  • FLEX-CORE: Clear fully toughened curved glass
  • FLEX-PURE: Ultra-clear fully toughened curved glass
  • FLEX-SHADE: Body-tinted fully toughened curved glass
  • FLEX-LAMI: Laminated curved safety glass for high-security structural applications
  • FLEX-THERM: Curved double glazed units (DGUs) for advanced thermal insulation
Features

Process Technology
Available Glass Variants
Curvature Profiles
Customization & Processing
Panel Thickness
Edge Finishing Options
Optical Standard

Description

CNC-Controlled Convection Heating with precision roller-bending machinery
Clear, extra-clear, tinted, and select high-performance low-E substrates
Standard cylindrical (single-radius), multi-radius, J-bends, and complex U-bends
Fully compatible with lamination, acoustic PVB integration, ceramic fritting, and digital printing
5 mm up to 19 mm
Flat polished, C-polished, precision arrissed
Strictly monitored for minimal localized bowing and flawless reflection profiles

Features

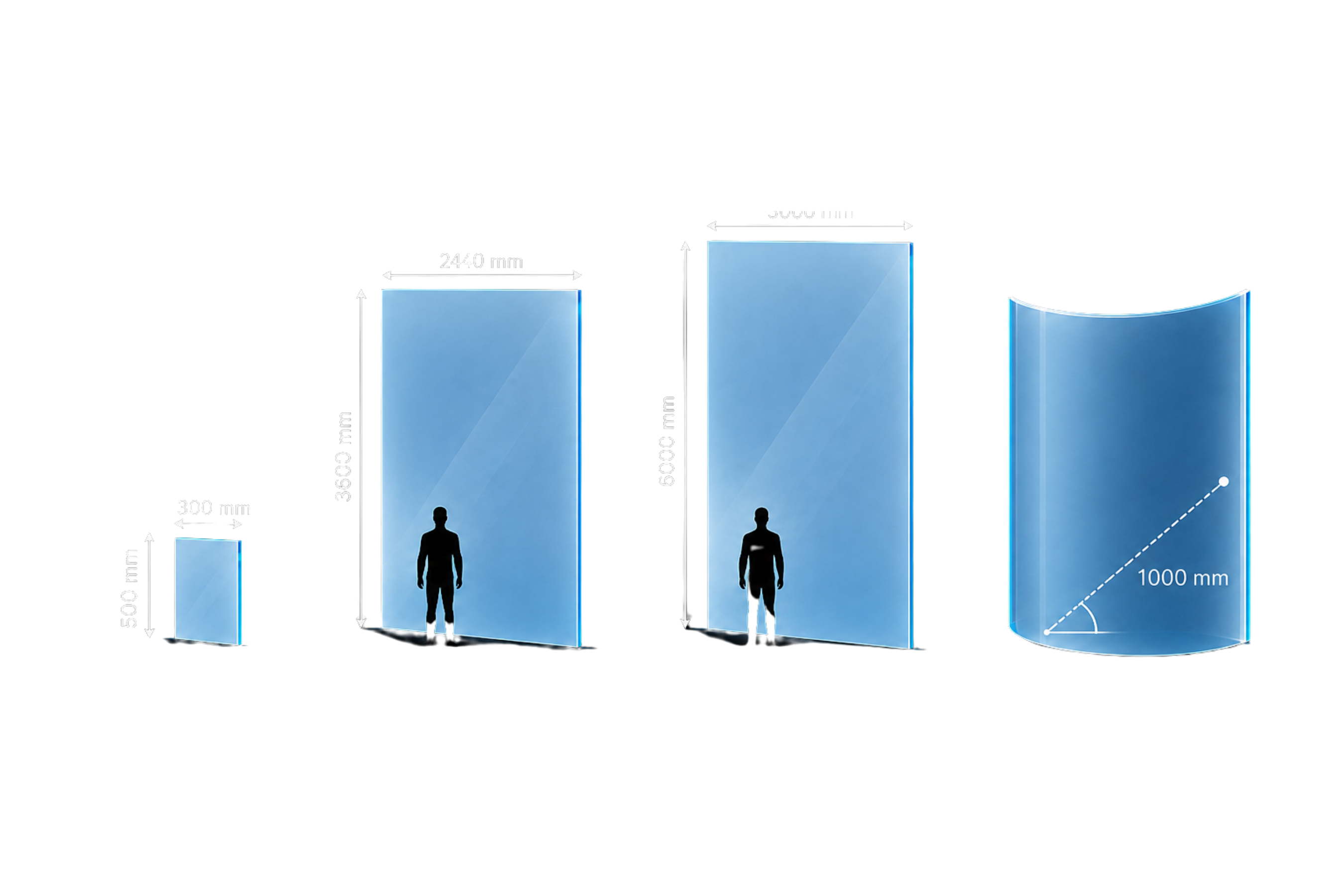

Minimum Dimensions
Maximum Dimensions
Minimum Radius of Curvature

Description

300 mm x 500 mm
2440 mm x 3600 mm (Standard architectural sizes)
3000 mm x 6000 mm (Jumbo bending capabilities)
1000 mm (for standard 5 mm to 10 mm thickness)
Tighter radii and custom architectural bends available upon thorough technical review.
